The 2nd Generation Environmental Sample Processor
(2G ESP)

  • A unique sensor capable of real-time, in situ analysis of DNA
  • The 2G ESP collects water samples (mL to 2L), concentrates the biomass, and uses gene probes to identify microorganisms
  • Data produced and stored in this device include whole cell microscopy, gene libraries and phycotoxins
  • With the ability to be deployed in remote locations, the 2G ESP can provide reliable data without collecting and transporting samples
  • It is truly a one of a kind sensor that allows scientist to answer persistent questions about biogeochemical cycling, food webs and environmental changes



For more details, click here.


sensor

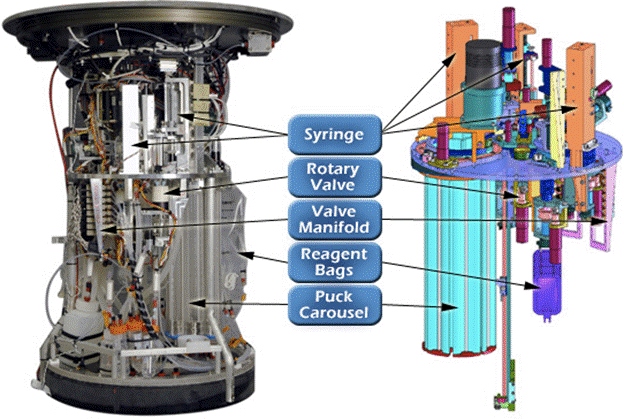

  Components of the Environmental Sample Processor.  The syringe measures reagents and injects them into sample holders called “pucks.”  The rotary valve controls fluid connections from syringes and reagent bags.  The valve manifold controls the flow of reagents.  Liquid reagents are stored in the reagent bags.  The puck carousel allows for the collection and analysis of multiple samples.  Photo courtesy of http://www.mbari.org/
